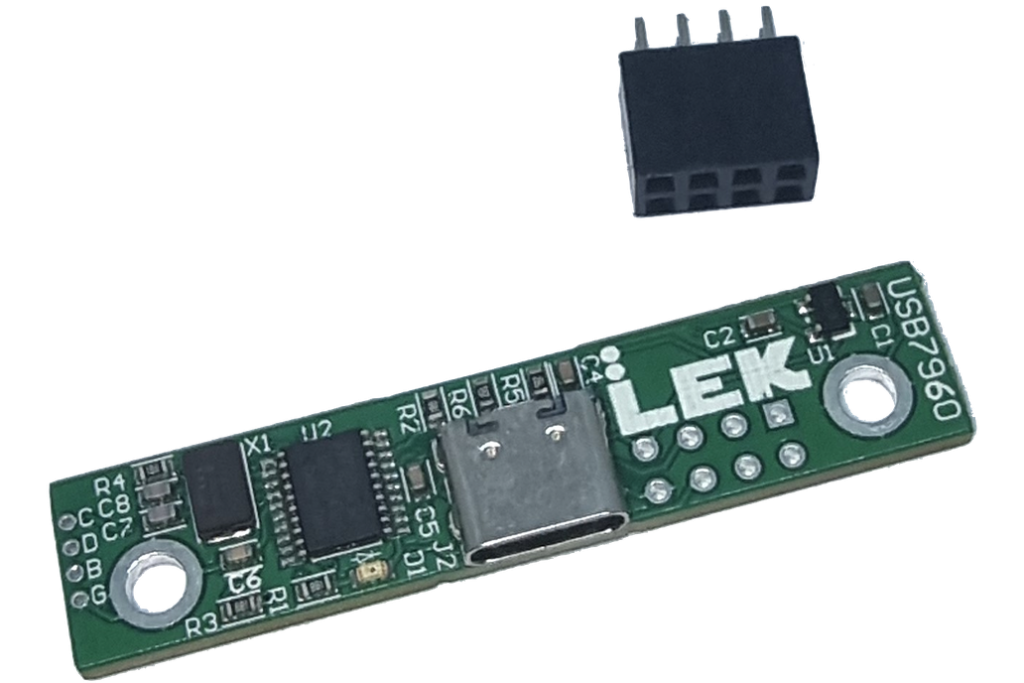

The KS030 USB7960 is a USB-to-BTS7960 interface board that lets any USB host — Windows PC, Linux machine, Raspberry Pi — control a BTS7960 half-bridge motor driver over a standard virtual COM port (VCP). No custom driver installation required: it uses the CDC class built into Windows and Linux.
The board manages the four BTS7960 PWM signals (L_EN, R_EN, LPWM, RPWM) via a simple ASCII serial command protocol over USB-C. It mounts directly to the BTS7960 header and shares the same mounting hole pattern for a secure, tidy installation.
Key features:
- USB-C connector — works with any modern USB host
- Enumerates as CDC COM port — no driver installation on Windows or Linux
- Controls all four BTS7960 PWM inputs via serial commands
- Includes unsoldered female header for direct or removable mounting
- Mounting holes align with BTS7960 module for a compact stack
No specifications listed yet. Check the description tab or the Tindie listing for full details.
| Weight | 0.02 kg |
| Dimensions | 1 × 5 × 1 cm |
KS030
USB7960 USB Motor Interface
In stock
Motor Drivers
$8.50
10 in stock
Also available on Tindie ↗
Interface
USB-C
Interface
CDC/VCP
Interface
BTS7960 compatible
