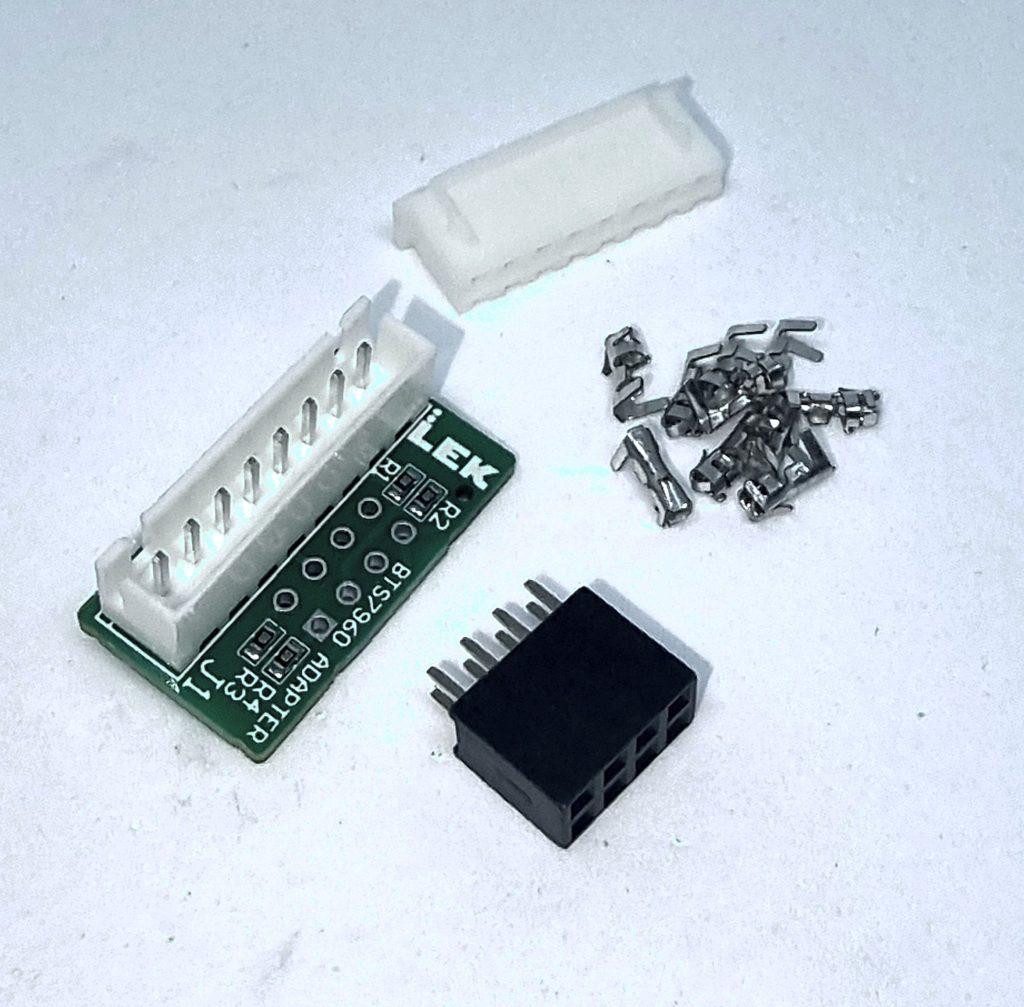

The KS029 BTS7960 XH Adapter converts the standard 2.54mm male pin header on the BTS7960 motor driver module into a polarised, friction-lock XH connector — preventing accidental disconnection and wrong-orientation wiring that is common with bare DuPont-style jumper wires.

Because the BTS7960 board has 10kΩ pull-down resistors on its control inputs, interfaces using open-collector or open-drain outputs (such as opto-isolators and some MCU peripherals) cannot drive the inputs high. This adapter includes pull-up resistors that restore compatibility with those interfaces.

Features:

• Converts BTS7960 header to polarised XH connector — no mismating, no loose wires
• Pull-up resistors for open-drain/open-collector interface compatibility
• Supplied with 4×2 female header (unsoldered) — solder directly or use as a removable plug
• Drop-in fit on all common BTS7960 motor driver modules

Datasheet (PDF)
