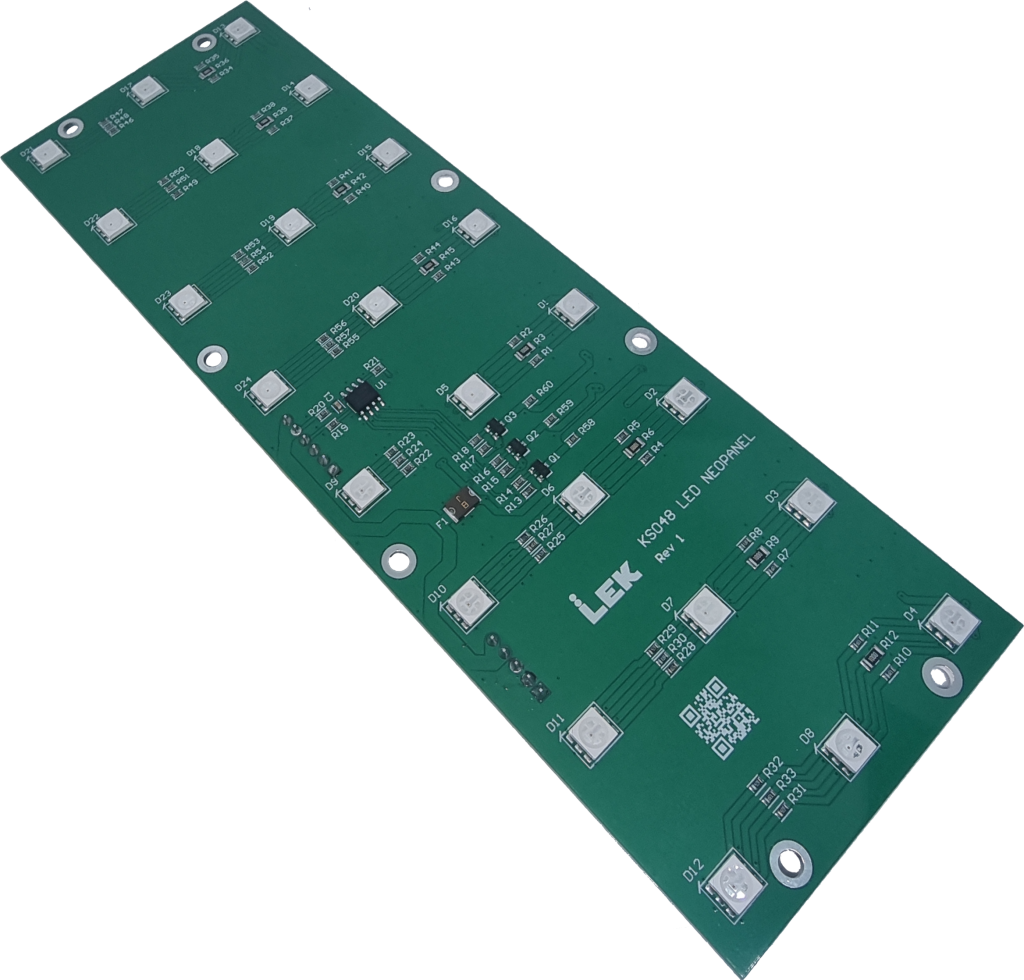

The KS048 NeoPanel is a panel-sized addressable RGB LED board — 24 individually controllable LEDs driven by an onboard WS2811 controller on a 65×190mm PCB. It uses the same NeoPixel-compatible single-wire protocol as WS2812B LEDs, so any NeoPixel library (FastLED, Adafruit NeoPixel) works with it out of the box.

Multiple NeoPanel boards can be daisy-chained via the data-out connector to build large RGB LED installations — illuminated signage, display panels, stage lighting — without complex wiring.

Specifications:

• 24× individually addressable RGB LEDs (WS2811 control IC)
• Input voltage: 9–14VDC (12V typical)
• Max current: 0.95A at full white (12V)
• NeoPixel / WS2812B library compatible
• JST XH 2.5mm polarised connectors for input and data-out
• Daisy-chainable for larger installations
• 65×190mm panel PCB
