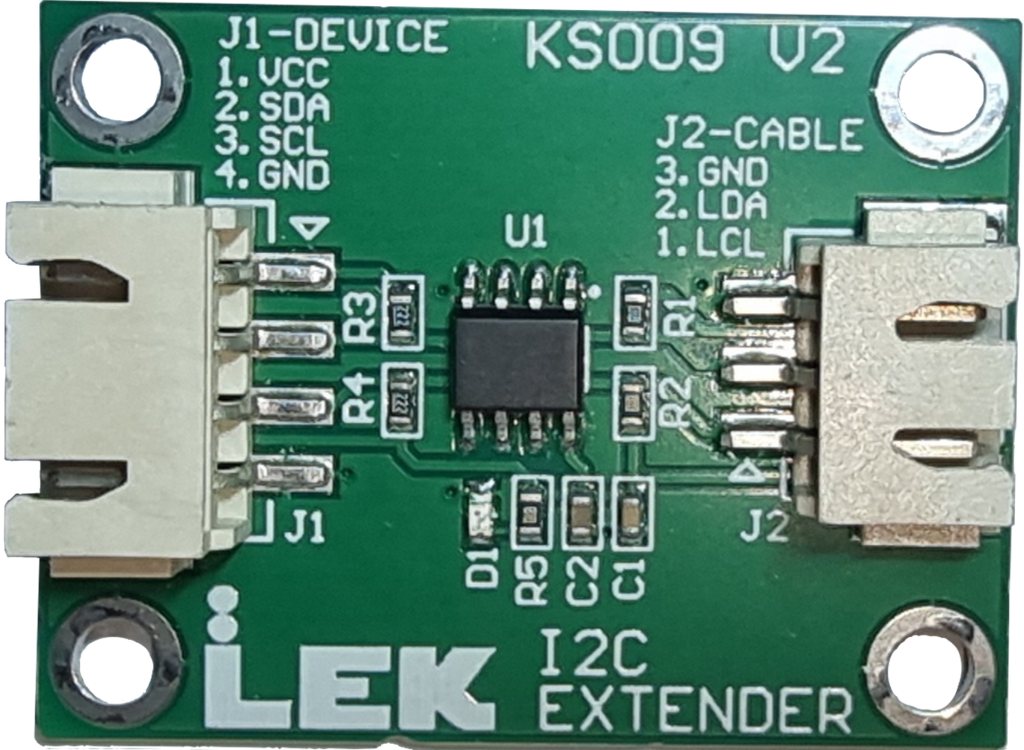

The KS009 I2C Extender lets you run an I2C bus up to 50 metres over standard twisted-pair cable (or equivalent), using the TI P82B715D bus extender IC. Place one board at each end of the cable run — the minimum setup is two boards, one near the host and one near the remote I2C device.

Multiple remote devices can share the same extended bus using a multi-drop topology. Signal integrity is maintained for cables carrying up to 3000pF capacitance.

Features:

• Single-supply operation — no extra rails needed
• Polarised friction-lock XH connectors
• Power-on LED indicator
• Drives up to 3000pF on the transmission cable
• Maintains up to 400pF on the host/device I2C bus
• Supports multi-drop I2C distribution over twisted-pair
• Compact 37mm × 28mm, 2-layer PCB
